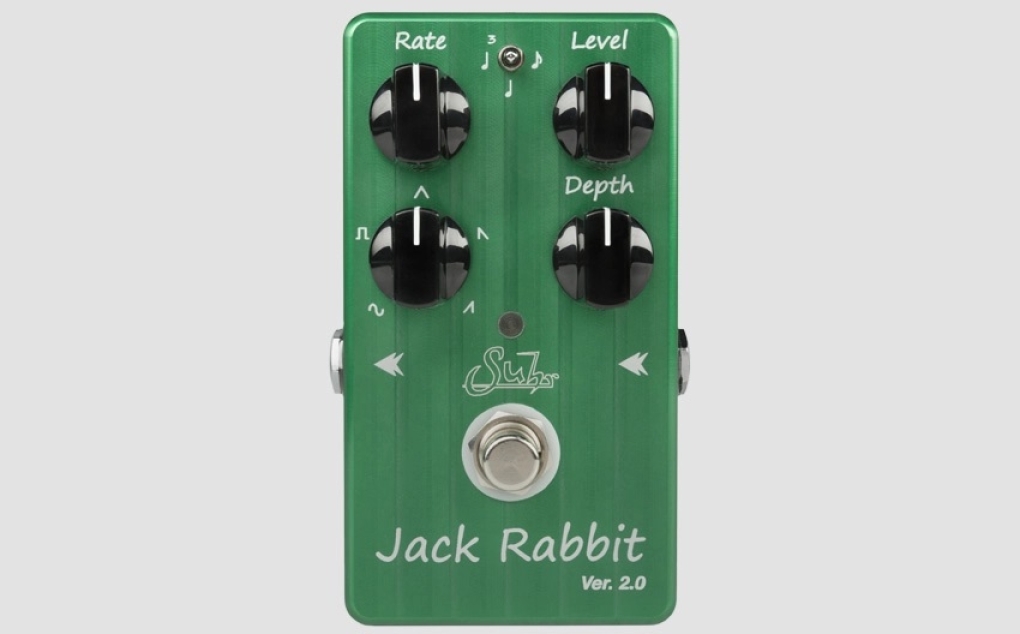

Jack Rabbit™ Pedal

CONTROLS

Jack Rabbit features an easy to tweak layout which includes Rate, Level, Waveform, and Depth controls.

Rate:
Controls the speed of the tremolo effect, from 1Hz to 20Hz.

Level:
Controls the output level of the pedal, from +0dB to +14dB.

Depth:
Controls the depth of the tremolo effect.

Waveform:
Selects the modulation waveform which includes Sine, Square, Triangle, Reverse Ramp, and Ramp.

ADDITIONAL FEATURES

True Bypass: Riot is true bypass via a relay. This function allows for the remote switching, and the battery monitor feature. The relay produces less popping when switching the pedal on and off.

FX Link: The FX Link connector allows the pedal’s switching and tap tempo function to be controlled from an external switch, pedal board, loop switcher, or any other custom interface. FX Link also provides the ability to power up in the On/Off state.

Low Battery Monitor:  A unique battery monitor circuit alerts the user to low battery conditions. In addition, the battery monitor will automatically switch the pedal to True Bypass if the battery voltage is too low for the circuitry to correctly operate.
